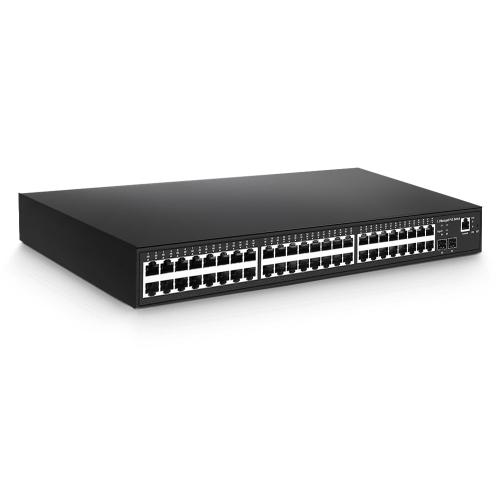

48 Ports Gigabit OpenWRT Managed PoE Switch with 2 Fiber SFP

48 Ports Gigabit OpenWRT Managed PoE Switch with 2 Fiber SFP

Model: TS8200-48P-2FM-O

TS8200-48P-2FM-O
OpenWRT  Kernel version 5.10

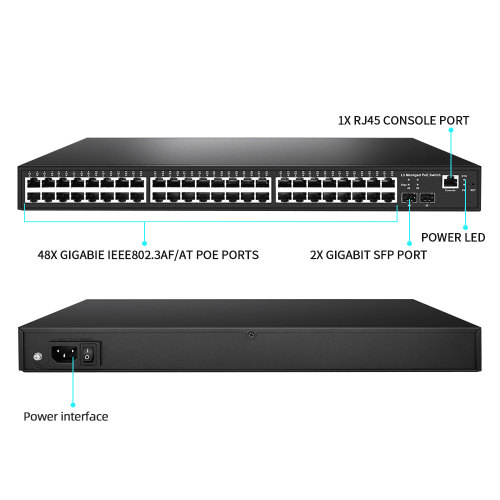

It supplies 48*1000Mbps PoE+ ports fully compliant with IEEE 802.3af/at PoE standard, plus 2*1G fiber SFP uplink ports. It's GXCOM independently developed managed switch with OpenWRT.  There are rich management features via Web and CLI interface both. This JetStream gigabit managed switch is cost-effective and intelligent for the ideal medium, enterprise and campus network solution.

Main Features

- Full Gigabit access

Provides 48 10/100/1000M adaptive RJ45 port, all the ports have the line speed forwarding capacity; provide 2 independent Gigabit SFP (Mini GBIC) expansion slot optical fiber module, fully protect user investment, convenient and flexible.

- Comprehensive safety protection system

Simple operation, simplifying the management of network; combination of ARP attack protection function, completely solve the network ARP spoofing attacks; support port security, can limit the number of port MAC address, MAC address effective defense attack; support DoS attack protection, effectively guarantee the network security。

- Powerful VLAN capabilities

IEEE, 802.1Q, VLAN, meet the needs of different users, make the network more convenient, efficient and safe。

- Rich QoS strategy

3 priority modes based on port, IEEE802.1p and DSCP to guarantee the priority processing of key business data; support traffic control function, and can reasonably allocate bandwidth。

- Multilevel access control policy

Powerful hardware ACL capacity, support L2~L4 data stream classification; easy network monitoring, traffic regulation, priority weight markers and data forwarding control; support time based ACL control, easy to realize the time accurate access control needs; support port and MAC 802.1x based authentication based on user access, easy setup.

- Reliability design

STP/RSTP/MSTP two layer link protection technology, greatly improve the ability of fault tolerance, redundancy link, to ensure stable operation of the network; provide static convergence and dynamic aggregation of two kinds of convergence pattern, effectively increase the link bandwidth, improve link reliability, while achieving load balancing, link backup; support multicast management, through the IGMP Snooping technology, effective inhibition of multicast overload caused by network congestion.

- Secure network management and maintenance

CLI command line (Console, Telnet), Web network, SNMP (V1/V2c/V3, SSH (V1/V2) and other management methods, to achieve fast and convenient network management; support user identity classification, filtering and other functions, enhanced security configuration; support port data monitoring, real-time monitoring of network status, to easily achieve the global unified management of the network, convenient flexible.
